SZS series gas boiler

Price: $3,500.00 - $48,000.00

The SZS low-nitrogen condensing gas boiler is a double-drum longitudinal "D" type quick-installed water tube boiler. It consists of an upper and lower drum, a membrane water-cooled wall, a convection tube bundle and a flue gas condensation recovery device. After the fuel is burned in the furnace, the flue gas is discharged into the chimney through the convection tube bundle and the flue gas condensation recovery device.

Rated thermal power: 2-25t/h
Rated thermal efficiency: ≥99%
Operating pressure: ≥1.25MPa
Available fuel: Natural gas, city gas, gas, coke oven gas, light diesel, etc.

Get Best Price Chat Online

Low Nitrogen Environmental Protection, High
Efficiency & Energy Saving

Safety - avoid early failure - fundamental

The water circulation adopts a combination of forced circulation and natural circulation; the devices in the pot are reasonably arranged, and the forced circulation ensures that the medium in a single circulation loop flows in the tube without causing boiling of steam and water, and the water speed is reasonable, safe and reliable.
Emission reduction - low emission - leadership

The diaphragm wall around the Brit SZS low-nitrogen condensing gas boiler naturally forms a large D-type furnace. The furnace volume heat load and cross-sectional heat load are moderate, which is more conducive to low nitrogen emissions, and nitrogen oxides are less than 30mg/Nm°.
Anti-corrosion

The smoke velocity in the convection area is designed to be moderate. Two adjacent tubes in the convection tube bundle area are connected with stainless steel flat steel to increase the rigidity of the tubes and prevent vibration when the flue gas is flushed. There are automatic hydrophobic devices at the bottom of the furnace and convection area to prevent acidic water corrosion. The multifunctional explosion-proof door is safe to use and easy to maintain.
Energy saving, high efficiency and foundation

The furnace is optimally arranged and the radiation heating surface is abundant; the energy saver (condenser) adopts patented technology invented with independent intellectual property rights, taking into account heat transfer efficiency and operating res

Design and Engineering

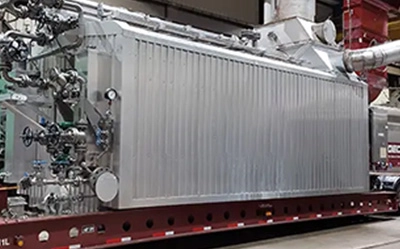

Free Customization

SZS series gas boiler Parameters

Boiler model		SZS2	SZS3	SZS4	SZS6	SZS8
Rated evaporation capacity (t/h)		2	3	4	6	8
Rated working pressure (MPa)		2.5	2.5	2.5	2.5	2.5
Saturated steam temperature (℃)		226	226	226	226	226
Superheated steam temperature (℃)		/
Feed water temperature (℃)		20	20	20	104	104
Full water capacity (m³)		3.9	4.6	6.9	7.6	9.5
Design thermal efficiency (%)		≥99	≥99	≥99	≥99	≥99
Exhaust smoke temperature (℃)		≤70	≤70	≤70	≤70	≤70
design fuel		Natural gas, city gas, gas, coke oven gas, 0# light diesel oil, etc.
Maximum shipping weight (t)		9.5	11	13	19	25.4
Body dimensions-L1W1H1 (mm)		4200×2600×3300	4800×2900×3300	5300X2900X3000	6200×2900×3700	6700×3200×3700
Overall dimensions after installation-L2W2H2 (mm)		4750×4000×3300	5400×4300×3300	5900×4990×4025	6800×4990×4500	8875×5100x4500
Interface diameter (mm)	main steam valve	DN65	DN80	DN80	DN125	DN150
	safety valve	2xDN40	2×DN40	2×DN40	2×DN65	2×DN80
	Inlet valve	DN40	DN40	DN40	DN40	DN50
	Drain valve	DN40	DN40	DN40	DN50	DN50

Boiler model		SZS10	SZS15	SZS20	SZS25	SZS30	SZS35
Rated evaporation capacity (t/h)		10	15	20	25	30	35
Rated working pressure (MPa)		1.25/1.6/2.5	1.25/1.6/2.5	1.25/1.6/2.5	1.25/1.6/2.5	1.25/1.6/2.5	1.25/1.6/2.5
Saturated steam temperature (℃)		194/204/226	194/204/226	194/204/226	194/204/226	194/204/226	194/204/226
Superheated steam temperature (℃)		≤450
Feed water temperature (C)		104	104	104	104	104	104
Full water capacity (m³)		10.2	13	14.2	16.4	20	21.2
Design thermal efficiency (%)		≥99	≥99	≥99	≥99	≥99	≥99
Exhaust smoke temperature (℃)		≤70	≤70	≤70	≤70	≤70	≤70
design fuel		Natural gas, city gas, gas, coke oven gas, 0# light diesel oil, etc.
Maximum shipping weight (t)		30	34	46	50	60	65
Body dimensions-L1W1H1 (mm)		6900×3300x3700 ol	7900x3660x38508	8900×4000×3900	10050×4200×4100	11700×4200×4200	12000×4200×4200
Overall dimensions after installation-L2W2H2 (mm)		9075x5295x4500	9320×6400x4725	11000×6200×4760	11360×6855×4590	13570×6365×5015	15480×6845x6070
Interface diameter (mm)	main steam valve	DN150	DN200	DN200	DN200	DN250	DN250
	safety valve	2xDN80	DN80、DN100	2xDN100	DN100+DN150	2×DN150	2xDN150
	Inlet valve	DN50	DN65	DN80	DN80	DN80	DN80
	Drain valve	DN50	DN50	DN50	DN50	DN50	DN50

SZS gas hot water boiler parameters

Boiler model		SZS14-1.25/115/70-Q	SZS17.5-1.25/115/70-Q	SZS21-1.25/115/70-Q	SZS29-1.6/130/70-Q (semi-assembled)	SZS29-1.6/130/70-Q (quick installation)
Rated thermal power (MW)		14	17.5	21	29	29
Rated working pressure (MPa)		1.25	1.25	1.25	1.6	1.6
Rated outlet water temperature (℃)		115	115	115	130	130
Rated return water temperature (℃)		70	70	70	70	70
Full water capacity (m³)		12.7	16.4	19.1	23.6	23.6
Design thermal efficiency (%)		≥96	≥96	≥96	≥96	≥96
Exhaust smoke temperature (℃)		≤90	≤90	≤90	≤90	≤90
design fuel		Natural gas, city gas, gas, coke oven gas, well 0 light diesel oil, etc.
Maximum shipping weight (t)		45	50	62	28	70
Body dimensions-L1W1*H1 (mm)		9820×3780×3850	9820×4070×4000	10700×4200×4000	9600×2000×4190	13400×4200×4200
Overall dimensions after installation-L2W2H2 (mm)		11240×6465×5085	11240×6765×5235	121207000×5330	12200×7750×5480	14840×7215×5535
Interface diameter (mm)	Outlet valve	DN250	DN250	DN300	DN300（2×DN200+DN150）	DN300（2×DN200+DN150）
	Return valve	DN250	DN250	DN300	2×DN200	2×DN200
	safety valve	DN150+DN50	DN150+DN100	20×DN150	20×DN150	20×DN150
	Drain valve	DNSO	DN50	DNS0	DN50	DNSO

* The above basic parameter table is for your reference, Brit Boiler can customize the suitable boiler device and system solution based on your actual condition.

* All specifications and descriptions provided herein may be different from the actual specifications and descriptions for the product. Brit Boiler reserves the right to make changes to this document and the product described herein, at anytime, without obligation on Brit Boiler to provide notification of such change.
